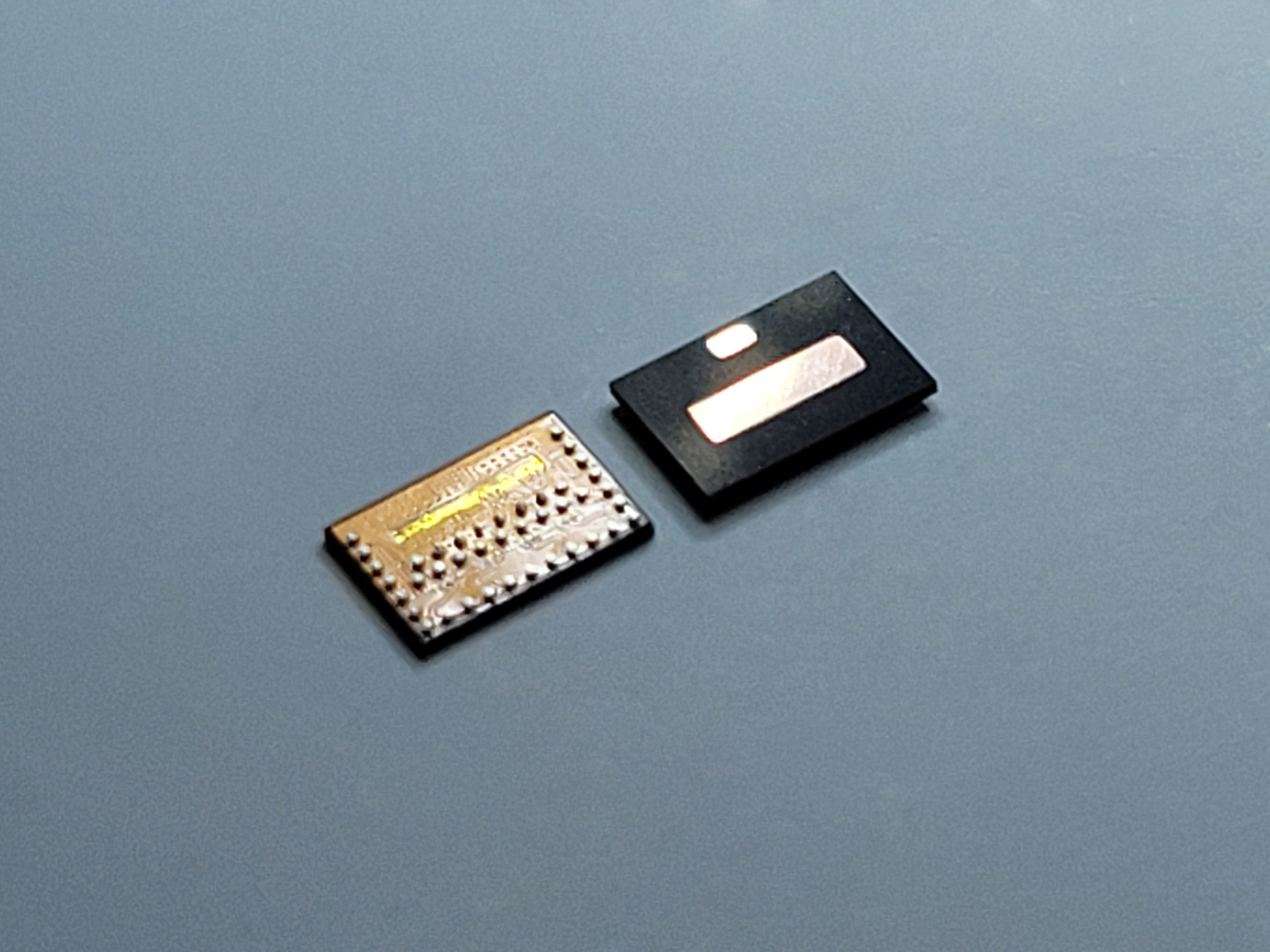

Optical Engine for 800G-2xLR4

The optical engine for 800G-2xLR4 enables a level of 800 Gbps data transfer. The data transmission distance is up to 2km when using with single-mode fiber(SMF). The elements necessary for photoelectric conversion such as EML/AWG/monitor PD/photodiode array /TIA IC are packaged inside the provided optical engine. The pigtail LC connector can be directly attached to the optical engine. For 800G application, two identical optical engine pairs are used in a transceiver.

Please scroll left and right.

Please scroll left and right.

Parameter Value Note
Max. data rate 425 Gbps Aggregated data rate
Signal Rate 53.125 Gbaud PAM4
Electrical Lane 4 ch Tx: Input, Rx: Output
Optical Lane 4 ch Tx: Input, Rx: Output
Package Size (Tx) 11.03 x 7.5 x 1.0 mm³
(Rx) 3.2 x 4.2 x 0.27 mm³
Excluding BGA size
Channel Pitch (Tx) 1.5 mm
(Rx) 0.75 mm
-
Output Optical Power >0 dBm Tx optical launch power per channel
Max. Transmission Distance 10 km Under QSFP transceiver condition
Operation Temperature 0~70 °C C-temp
Center Wavelength 1271nm / 1291nm / 1311nm / 1331nm CWDM
Laser Type EML (Electro-absorption Modulated Laser) -
Detector Type PIN photodiode array -
Data Sheet - Provided on customer's request
Test Result - Provided on customer's request
  • QSFP-DD 800G-2xLR4 Transceiver
  • QSFP112 800G-2xLR4 Transceiver
